I2C-Master Core

Author

Richard Herveille

rherveille@opencores.org

Rev. 0.9

October 24, 2024

Revision History

Table 36 Revision history

Re v.	Date	Author	Description
0 .1	17 /02/01	Richard Herveille	First draft release
0 .2	01 /03/01	Richard Herveille	Some cleaning up throughout the document Added ‘Programming Examples’ section
0 .3		Richard Herveille	Added some comments after core-changes added BUSY bit (status register) changed I2C IO for ASIC support added comment for FGPA IO
0 .4	10 /19/01	Richard Herveille	Changed core’s databus size to 8bit. Changed documentation to reflect changes. Changed port names to new naming convention.
0 .5	18 /02/02	Richard Herveille	Changed table headers. Added OpenCores logo.
0. 5a	05 /02/02	Richard Herveille	Reviewed entire document.
0 .6	21 /03/02	Richard Herveille	Added Appendix A, Synthesis Results
0 .7	25 /06/02	Richard Herveille	Changed Prescale Register formula
0 .8	30 /12/02	Richard Herveille	Added Multi-Master capabilities. New timing diagrams.
0 .9	03 /07/03	Richard Herveille	Changed ‘0x5C’ to ‘0xAC’ in Example1. Changed ‘RW’ to ‘W’ in Command Register. Changed ‘RW’ to ‘W’ in Transmit Register.

Introduction

I2C is a two-wire, bi-directional serial bus that provides a simple and efficient method of data exchange between devices. It is most suitable for applications requiring occasional communication over a short distance between many devices. The I2C standard is a true multi-master bus including collision detection and arbitration that prevents data corruption if two or more masters attempt to control the bus simultaneously.

The interface defines 3 transmission speeds:

• Normal: 100Kbps

• Fast: 400Kbps

• High speed: 3.5Mbps

Only 100Kbps and 400Kbps modes are supported directly. For High speed special IOs are needed. If these IOs are available and used, then High speed is also supported.

FEATURES

• Compatible with Philips I2C standard

• Multi Master Operation

• Software programmable clock frequency

• Clock Stretching and Wait state generation

• Software programmable acknowledge bit

• Interrupt or bit-polling driven byte-by-byte data-transfers

• Arbitration lost interrupt, with automatic transfer cancelation

• Start/Stop/Repeated Start/Acknowledge generation

• Start/Stop/Repeated Start detection

• Bus busy detection

• Supports 7 and 10bit addressing mode

• Operates from a wide range of input clock frequencies

• Static synchronous design

• Fully synthesizable

IO ports

Core Parameters

Table 37 Core parameters

Parameter	Type	Default	Description
ARST_LVL	Bit	1’b0	Asynchronous reset level

ARST_LVL

The asynchronous reset level can be set to either active high (1’b1) or active low (1’b0).

WISHBONE interface signals

The core features a WISHBONE RevB.3 compliant WISHBONE Classic interface. All output signals are registered. Each access takes 2 clock cycles.

arst_i is not a WISHBONE compatible signal. It is provided for FPGA implementations. Using [arst_i] instead of [wb_rst_i] can result in lower cell-usage and higher performance, because most FPGAs provide a dedicated asynchronous reset path. Use either [arst_i] or [wb_rst_i], tie the other to a negated state.

External connections

Table 38 External connections

Port	Width	Direction	Description
scl_pad_i	1	Input	Serial Clock line input
scl_pad_o	1	Output	Serial Clock line output
scl_pad_oe	1	Output	Serial Clock line output enable
sda_pad_i	1	Input	Serial Data line input
sda_pad_o	1	Output	Serial Data line output
sda_pad_oe	1	Output	Serial Data line output enable

The IC interface uses a serial data line (SDA) and a serial clock line (SCL) for data transfers. All devices connected to these two signals must have open drain or open collector outputs. Both lines must be pulled-up to VCC by external resistors.

The tri-state buffers for the SCL and SDA lines must be added at a higher hierarchical level. Connections should be made according to the figure:

Fig. 12 Tri-state buffer connection

For FPGA designs the compiler can automatically insert these buffers using the following VHDL code:

scl <= scl_pad_o when (scl_padoen_oe = ‘0’) else ‘Z’;
sda <= sda_pad_o when (sda_padoen_oe = ‘0’) else ‘Z’;
scl_pad_i <= scl;
scl_pad_i <= sda;

Verilog code:

assign scl = scl_padoen_oe ? 1’bz : scl_pad_o;
assign sda = sda_padoen_oe ? 1’bz: sda_pad_o;
assign scl_pad_i = scl;
assign sda_pad_i = sda;

Registers

Registers list

Table 39 Register list

Name	Address	Width	Access	Description
PRERlo	0x00	8	RW	Clock Prescale register lo-byte
PRERhi	0x01	8	RW	Clock Prescale register hi-byte
CTR	0x02	8	RW	Control register
TXR	0x03	8	W	Transmit register
RXR	0x03	8	R	Receive register
CR	0x04	8	W	Command register
SR	0x04	8	R	Status register

Register description

Prescale Register

This register is used to prescale the SCL clock line. Due to the structure of the I2C interface, the core uses a 5*SCL clock internally. The prescale register must be programmed to this 5*SCL frequency (minus 1). Change the value of the prescale register only when the ‘EN’ bit is cleared.

Example: wb_clk_i = 32MHz, desired SCL = 100KHz

prescale = 32 MHz / (5*100 KHz) - 1 = 63 (dec) = 3F (hex)

Reset value: 0xFFFF

Control register

Reset Value: 0x00

The core responds to new commands only when the ‘EN’ bit is set. Pending commands are finished. Clear the ‘EN’ bit only when no transfer is in progress, i.e. after a STOP command, or when the command register has the STO bit set. When halted during a transfer, the core can hang the I²C bus.

Transmit register

Bit#	Access	Description
7:1	W	Next byte to transmit via I2C
0	W	In case of a data transfer this bit represent the data’s LSB. In case of a slave address transfer this bit represents the RW bit. ‘1’ = reading from slave ‘0’ = writing to slave

Reset value: 0x00

Receive register

Bit#	Access	Description
7:0	R	Last byte received via I2C

Reset value: 0x00

Command register

Reset Value: 0x00

The STA, STO, RD, WR, and IACK bits are cleared automatically. These bits are always read as zeros.

Status register

Reset Value: 0x00

Please note that all reserved bits are read as zeros. To ensure forward compatibility, they should be written as zeros.

Operation

System Configuration

The I²C system uses a serial data line (SDA) and a serial clock line (SCL) for data transfers. All devices connected to these two signals must have open drain or open collector outputs. The logic AND function is exercised on both lines with external pull-up resistors.

Data is transferred between a Master and a Slave synchronously to SCL on the SDA line on a byte-by-byte basis. Each data byte is 8 bits long. There is one SCL clock pulse for each data bit with the MSB being transmitted first. An acknowledge bit follows each transferred byte. Each bit is sampled during the high period of SCL; therefore, the SDA line may be changed only during the low period of SCL and must be held stable during the high period of SCL. A transition on the SDA line while SCL is high is interpreted as a command (see START and STOP signals).

I²C Protocol

Normally, a standard communication consists of four parts:

1. START signal generation

2. Slave address transfer

3. Data transfer

4. STOP signal generation

Fig. 13 I2C waveform

START signal

When the bus is free/idle, meaning no master device is engaging the bus (both SCL and SDA lines are high), a master can initiate a transfer by sending a START signal. A START signal, usually referred to as the S-bit, is defined as a high-to-low transition of SDA while SCL is high. The START signal denotes the beginning of a new data transfer.

A Repeated START is a START signal without first generating a STOP signal. The master uses this method to communicate with another slave or the same slave in a different transfer direction (e.g. from writing to a device to reading from a device) without releasing the bus.

The core generates a START signal when the STA-bit in the Command Register is set and the RD or WR bits are set. Depending on the current status of the SCL line, a START or Repeated START is generated.

Slave Address Transfer

The first byte of data transferred by the master immediately after the START signal is the slave address. This is a seven-bits calling address followed by a RW bit. The RW bit signals the slave the data transfer direction. No two slaves in the system can have the same address. Only the slave with an address that matches the one transmitted by the master will respond by returning an acknowledge bit by pulling the SDA low at the 9th SCL clock cycle.

Note: The core supports 10bit slave addresses by generating two address transfers. See the Philips I²C specifications for more details.

The core treats a Slave Address Transfer as any other write action. Store the slave device’s address in the Transmit Register and set the WR bit. The core will then transfer the slave address on the bus.

Data Transfer

Once successful slave addressing has been achieved, the data transfer can proceed on a byte-by-byte basis in the direction specified by the RW bit sent by the master. Each transferred byte is followed by an acknowledge bit on the 9th SCL clock cycle. If the slave signals a No Acknowledge, the master can generate a STOP signal to abort the data transfer or generate a Repeated START signal and start a new transfer cycle.

If the master, as the receiving device, does not acknowledge the slave, the slave releases the SDA line for the master to generate a STOP or Repeated START signal.

To write data to a slave, store the data to be transmitted in the Transmit Register and set the WR bit. To read data from a slave, set the RD bit. During a transfer the core set the TIP flag, indicating that a Transfer is In Progress. When the transfer is done the TIP flag is reset, the IF flag set and, when enabled, an interrupt generated. The Receive Register contains valid data after the IF flag has been set. The user may issue a new write or read command when the TIP flag is reset.

STOP signal

The master can terminate the communication by generating a STOP signal. A STOP signal, usually referred to as the P-bit, is defined as a low-to-high transition of SDA while SCL is at logical ‘1’.

Arbitration Procedure

Clock Synchronization

The I²C bus is a true multimaster bus that allows more than one master to be connected on it. If two or more masters simultaneously try to control the bus, a clock synchronization procedure determines the bus clock. Because of the wired-AND connection of the I²C signals a high to low transition affects all devices connected to the bus. Therefore a high to low transition on the SCL line causes all concerned devices to count off their low period. Once a device clock has gone low it will hold the SCL line in that state until the clock high state is reached. Due to the wired-AND connection the SCL line will therefore be held low by the device with the longest low period, and held high by the device with the shortest high period.

Fig. 14 Clock synchronization

Clock Stretching

Slave devices can use the clock synchronization mechanism to slow down the transfer bit rate. After the master has driven SCL low, the slave can drive SCL low for the required period and then release it. If the slave’s SCL low period is greater than the master’s SCL low period, the resulting SCL bus signal low period is stretched, thus inserting wait-states.

Architecture

The I2C core is built around four primary blocks; the Clock Generator, the Byte Command Controller, the Bit Command Controller and the DataIO Shift Register.

All other blocks are used for interfacing or for storing temporary values.

Fig. 15 Internal structure of I2C master core

Clock Generator

The Clock Generator generates an internal 4*Fscl clock enable signal that triggers all synchronous elements in the Bit Command Controller. It also handles clock stretching needed by some slaves.

Byte Command Controller

The Byte Command Controller handles I2C traffic at the byte level. It takes data from the Command Register and translates it into sequences based on the transmission of a single byte. By setting the START, STOP, and READ bit in the Command Register, for example, the Byte Command Controller generates a sequence that results in the generation of a START signal, the reading of a byte from the slave device, and the generation of a STOP signal. It does this by dividing each byte operation into separate bit-operations, which are then sent to the Bit Command Controller.

Fig. 16 Bit command controller flow chart

Bit Command Controller

The Bit Command Controller handles the actual transmission of data and the generation of the specific levels for START, Repeated START, and STOP signals by controlling the SCL and SDA lines. The Byte Command Controller tells the Bit Command Controller which operation has to be performed. For a single byte read, the Bit Command Controller receives 8 separate read commands. Each bit-operation is divided into 5 pieces (idle and A, B, C, and D), except for a STOP operation which is divided into 4 pieces (idle and A, B, and C).

Fig. 17 Bit command controller waveform

DataIO Shift Register

The DataIO Shift Register contains the data associated with the current transfer. During a read action, data is shifted in from the SDA line. After a byte has been read the contents are copied into the Receive Register. During a write action, the Transmit Register’s contents are copied into the DataIO Shift Register and are then transmitted onto the SDA line.

Programming examples

Example 1

Write 1 byte of data to a slave.

Slave address = 0x51 (b”1010001”)

Data to write = 0xAC

I2C Sequence:

1. generate start command

2. write slave address + write bit

3. receive acknowledge from slave

4. write data

5. receive acknowledge from slave

6. generate stop command

Commands:

1. write 0xA2 (address + write bit) to Transmit Register, set STA bit, set WR bit.

– wait for interrupt or TIP flag to negate –

2. read RxACK bit from Status Register, should be ‘0’.

write 0xAC to Transmit register, set STO bit, set WR bit.

– wait for interrupt or TIP flag to negate –

3. read RxACK bit from Status Register, should be ‘0’.

Fig. 18 Waveform of program example 1

Note

Please note that the time for the Interrupt Service Routine is not shown here. It is assumed that the ISR is much faster then the I2C cycle time, and therefore not visible.

Example 2

Read a byte of data from an I2C memory device.

Slave address = 0x4E

Memory location to read from = 0x20

I2C sequence:

1. generate start signal

2. write slave address + write bit

3. receive acknowledge from slave

4. write memory location

5. receive acknowledge from slave

6. generate repeated start signal

7. write slave address + read bit

8. receive acknowledge from slave

9. read byte from slave

10. write no acknowledge (NACK) to slave, indicating end of transfer

11. generate stop signal

Commands:

1. write 0x9C (address + write bit) to Transmit Register, set STA bit, set WR bit.

– wait for interrupt or TIP flag to negate –

2. read RxACK bit from Status Register, should be ‘0’.

write 0x20 to Transmit register, set WR bit.

– wait for interrupt or TIP flag to negate –

3. read RxACK bit from Status Register, should be ‘0’.

write 0x9D (address + read bit) to Transmit Register, set STA bit, set WR bit.

– wait for interrupt or TIP flag to negate –

4. set RD bit, set ACK to ‘1’ (NACK), set STO bit

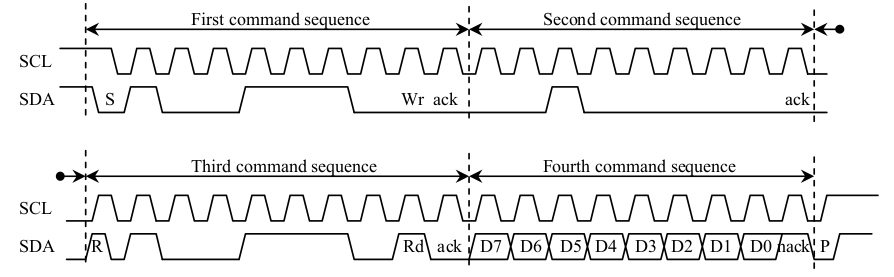

Fig. 19 Waveform of program example 2

Note

Please note that the time for the Interrupt Service Routine is not shown here. It is assumed that the ISR is much faster then the I2C cycle time, and therefore not visible.

Appendix A

Synthesis results

Synthesis tool: Synplify Pro

Table 40 Synthesis result using Synoplify Pro

Technology	Device	Speed grade	Fmax	Resource usage
ACTEL	A54SX16ATQ100	std	58MHz	Modules: 352
Altera	EP10K50ETC144	-3	82MHz	LCs: 294
	EP20K30ETC144	-3	74MHz	ATOMS: 257
Xilinx	2s15CS144	-5	82MHz	LUTs: 229
	XCV50ECS144	-8	118MHz	LUTs: 230
